229

Tool Evaluation |Spatial Conditions

228

Tool Evaluation |Spatial Conditions

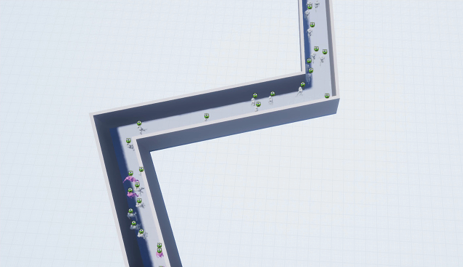

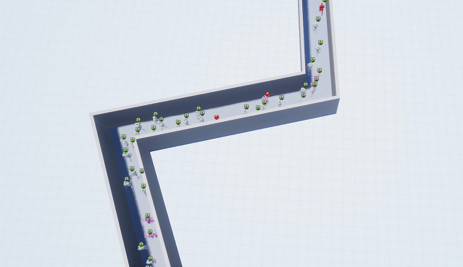

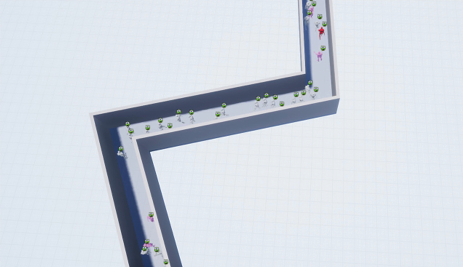

Corridor Condition

Simulated and screen-recorded by Author.

Corridor analytical frames

Frame-captured by Author.

Figure 4.1.3 - 4.1.4

These figure looks at how the agents behave within a corridor condition. It can be observed that the agents will walk along the corridor geometry, with a much smaller percentage of them talking due to the lower amount of agent to agent interactions from the smaller more constricted space. It is also interesting to note how the crowd dynamics begin to form lanes similar to the social forces model briefly mentioned from chapter 2, which can be speculated to be caused by the alignment forces that causes people to keep pace with their surroundings.

1

3

5

7

2

4

6

8
