217

Tool Creation |Application Methodology

216

Tool Creation |Application Methodology

Figure 3.6.13 - 3.6.14

Various scenarios can be programmed depending on the situation. This figure shows

an example of an evacuation scenario, where each agent tries to make their way to the

nearest exit. With more substantial scripting depending on the project scenario, it then becomes possible to simulate specific spatial scenarios beyond simple evacuations, such as lectures, outdoor events, gallery talks, performances, New Year’s Eve celebrations, etc, as well as more specific spaces that may require additional considerations such as checking into airports, hospitals, and so on.

1

3

5

7

2

4

6

8

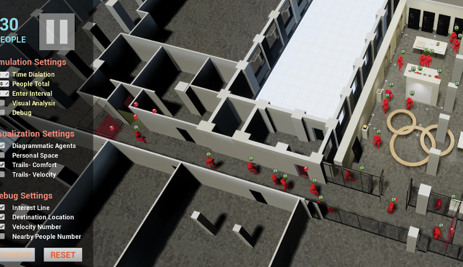

The GUI can also be used to control various scripted events, such as an evacuation scenario

Simulated and screen-recorded by Author.

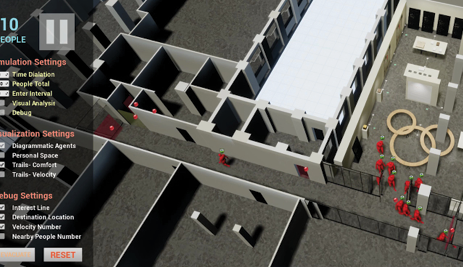

Scenario programming sequential frames

Frame-captured by Author.
